NerdQaxe++ - Made in Germany

Four Chips, a lot of Power

The NerdQaxe ++ packs 4× BM1370 ASICs—the same generation used in the Antminer S21 Pro—delivering roughly 4.9 TH/s (4896 GH/s) while drawing only ≈ 75 W (about 15–16 W/TH).

Germany made & CE:

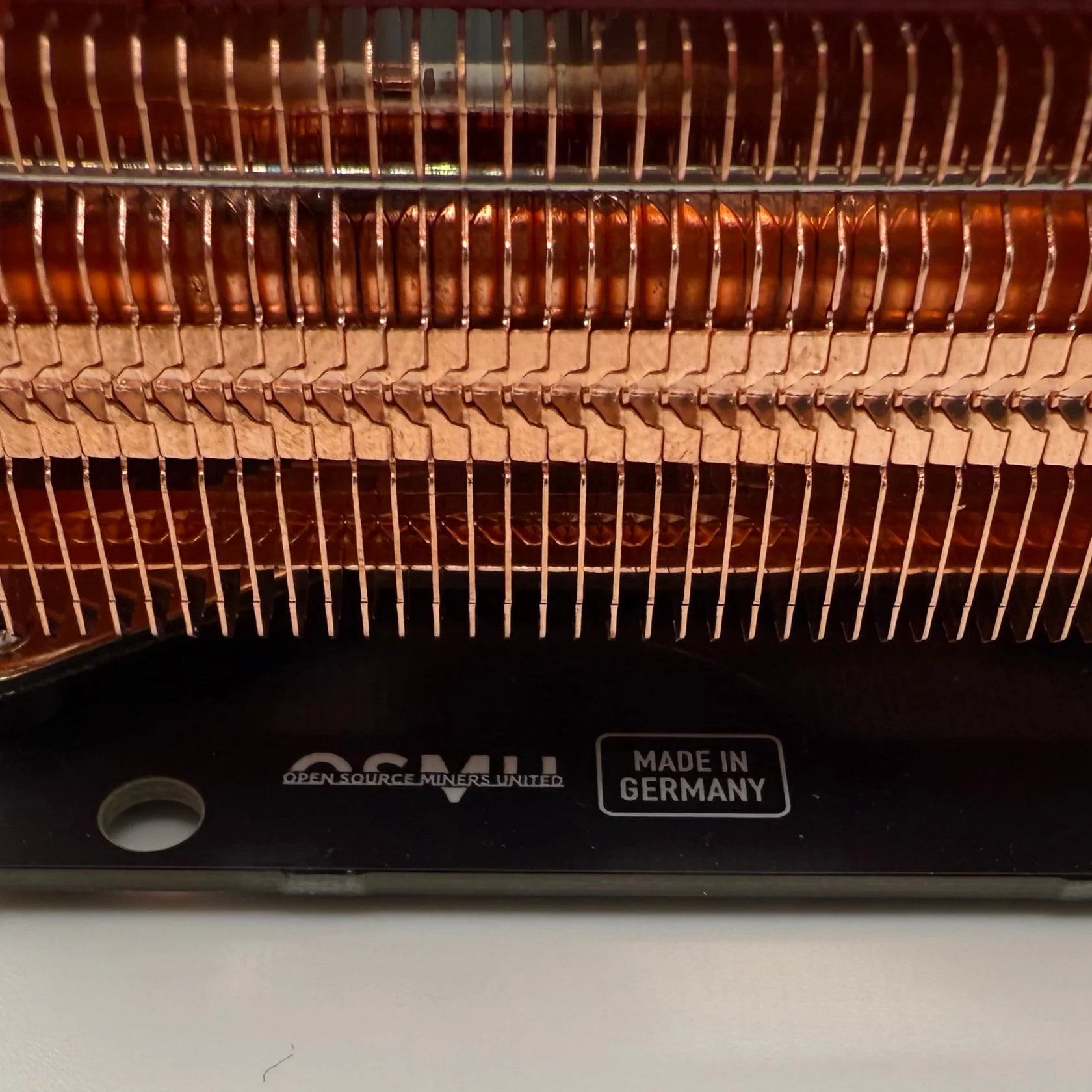

Every unit is built in Germany under CE guidelines and ships with a 540 g solid-copper heatsink plus a performance PWM fan, keeping temperatures far lower than common aluminium coolers.

Open Source:

All hardware and firmware are fully open-source. Just unbox, connect power and network, add your Bitcoin address—plug and mine.

What’s New?

• Made in Germany & CE certified – manufactured and final-inspected to the highest standards.
• ≈ 4.9 TH/s out of the box – four BM1370 ASICs in a home-sized form factor.
• 540 g solid-copper heatsink + performance fan – cooler, quieter, and more boost headroom than aluminium designs.
• Efficient: about 75 W total draw (≈ 15–16 W/TH).

Performance & Features

• 4 × BM1370 ASICs – cutting-edge 4 nm silicon for maximum hashrate at minimum power.
• Plug-and-Mine – AxeOS pre-flashed; get mining in under 5 minutes.
• Truly Open & Expandable – hardware and firmware sources are public.

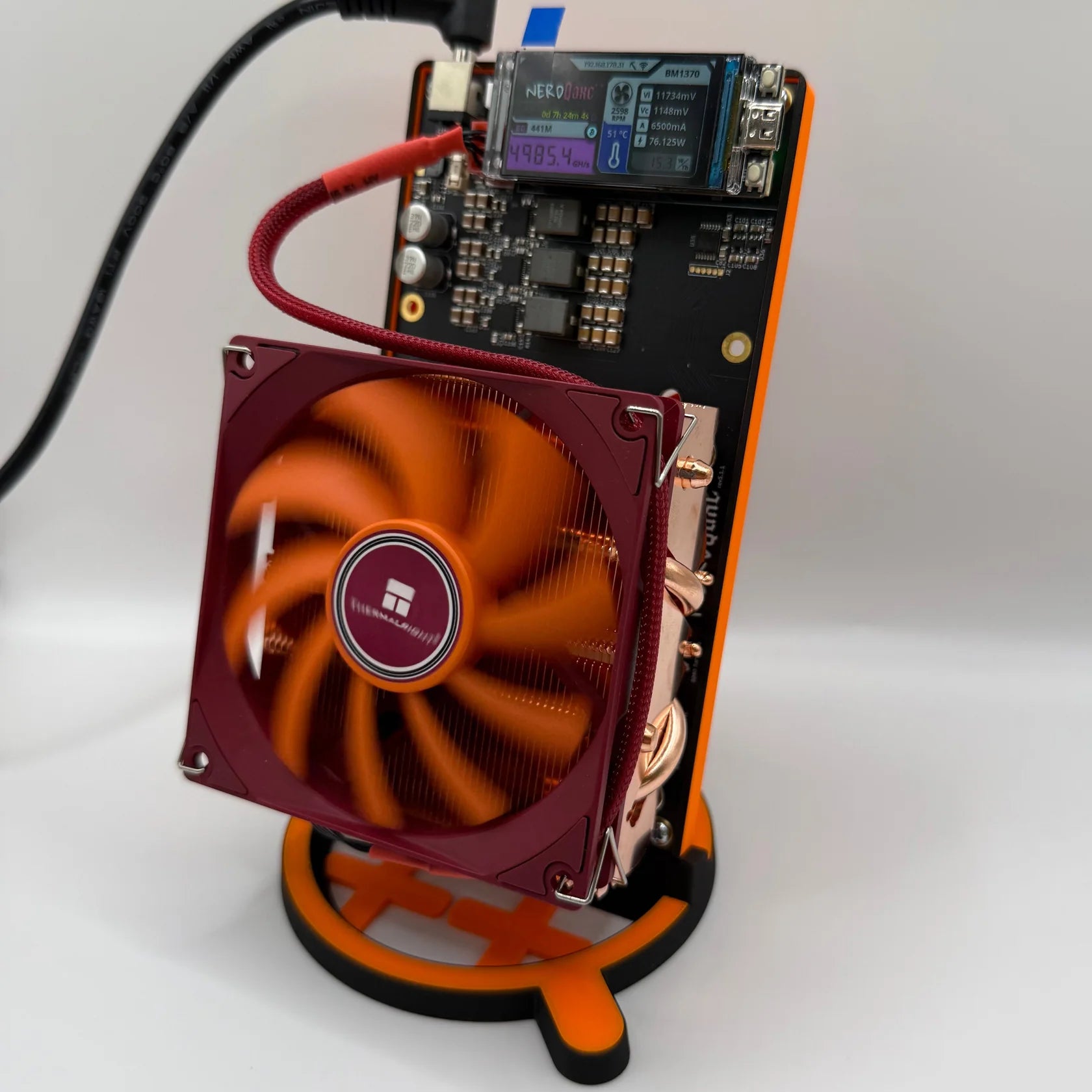

• Robust Copper Cooling – 540 g of copper plus a PWM fan keep temps stable long-term.
• 24/7-Ready Build – hand-picked parts and reinforced solder joints for nonstop duty.

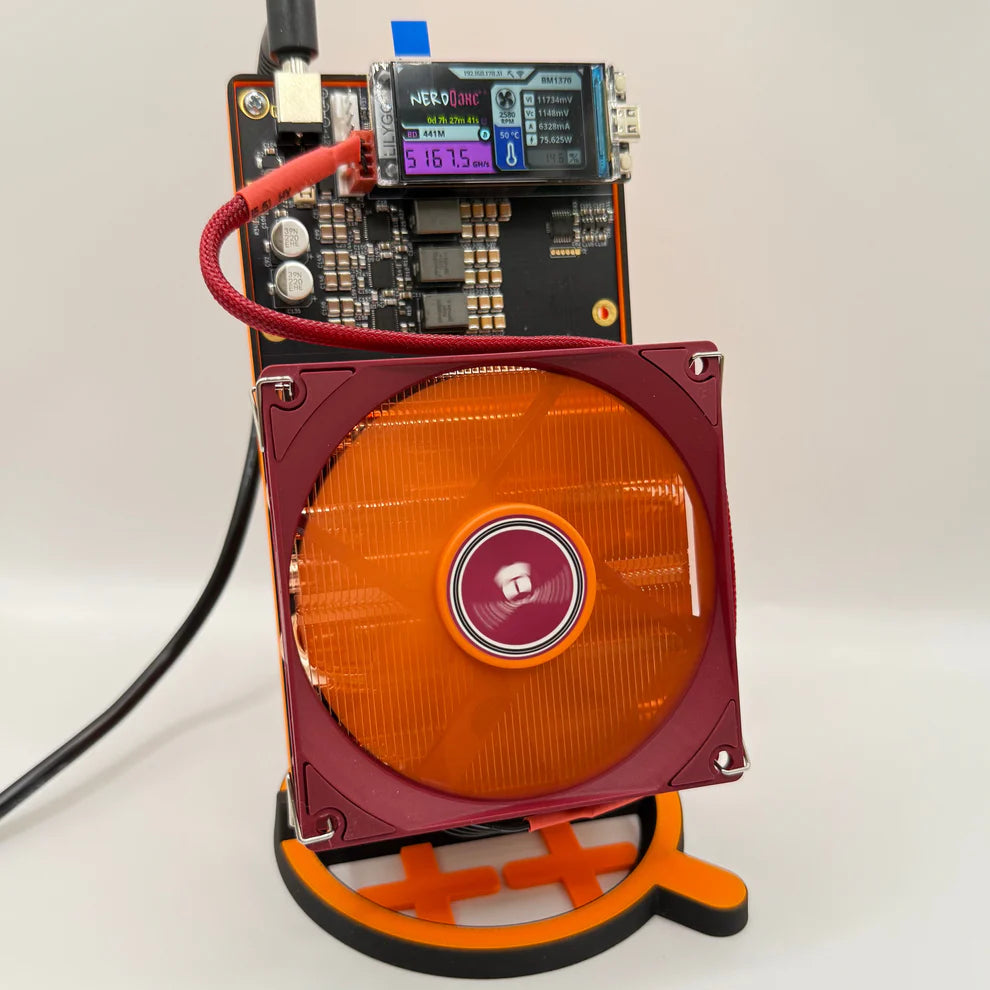

• OLED display – live stats for hashrate, temperature, and voltage right on the device.

Technical Specs

• Hashrate: ~4.9 TH/s (±15 %)
• ASICs: 4 × BM1370PA
• Power draw: ~75 W @ 12 V
• Efficiency: ~15–16 W/TH
• Cooling: 540 g solid copper + performance PWM fan (pre-installed)
• Firmware: AxeOS (open source)
• Power supply: 120 W (12 V / 10 A) power supply included (EU plug only!)
• Connectivity: Wi-Fi

In the Box

• NerdQaxe ++ – Made in Germany, incl. 540 g copper heatsink + performance fan (pre-installed)
• 120 W (12 V / 10 A) power supply with EU plug

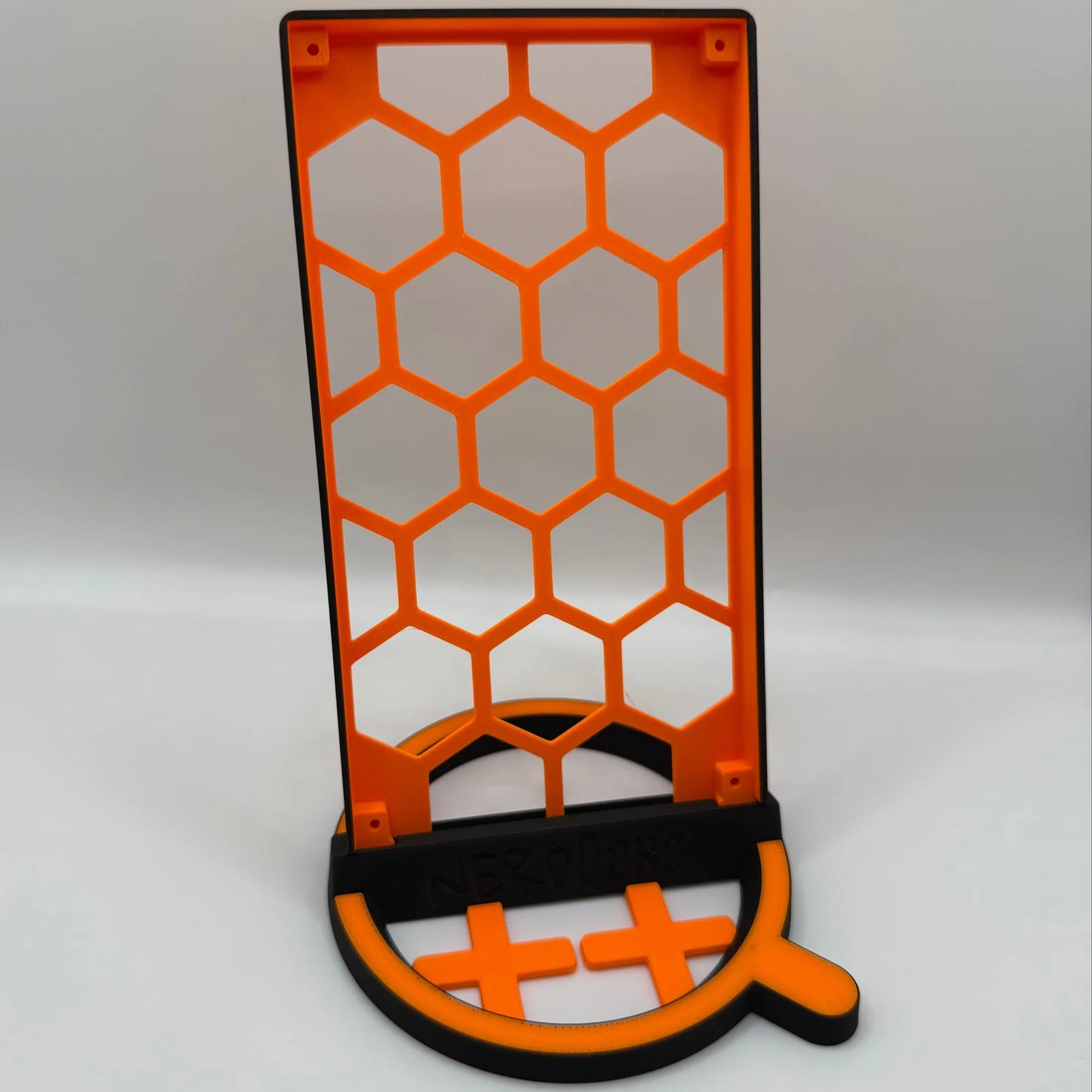

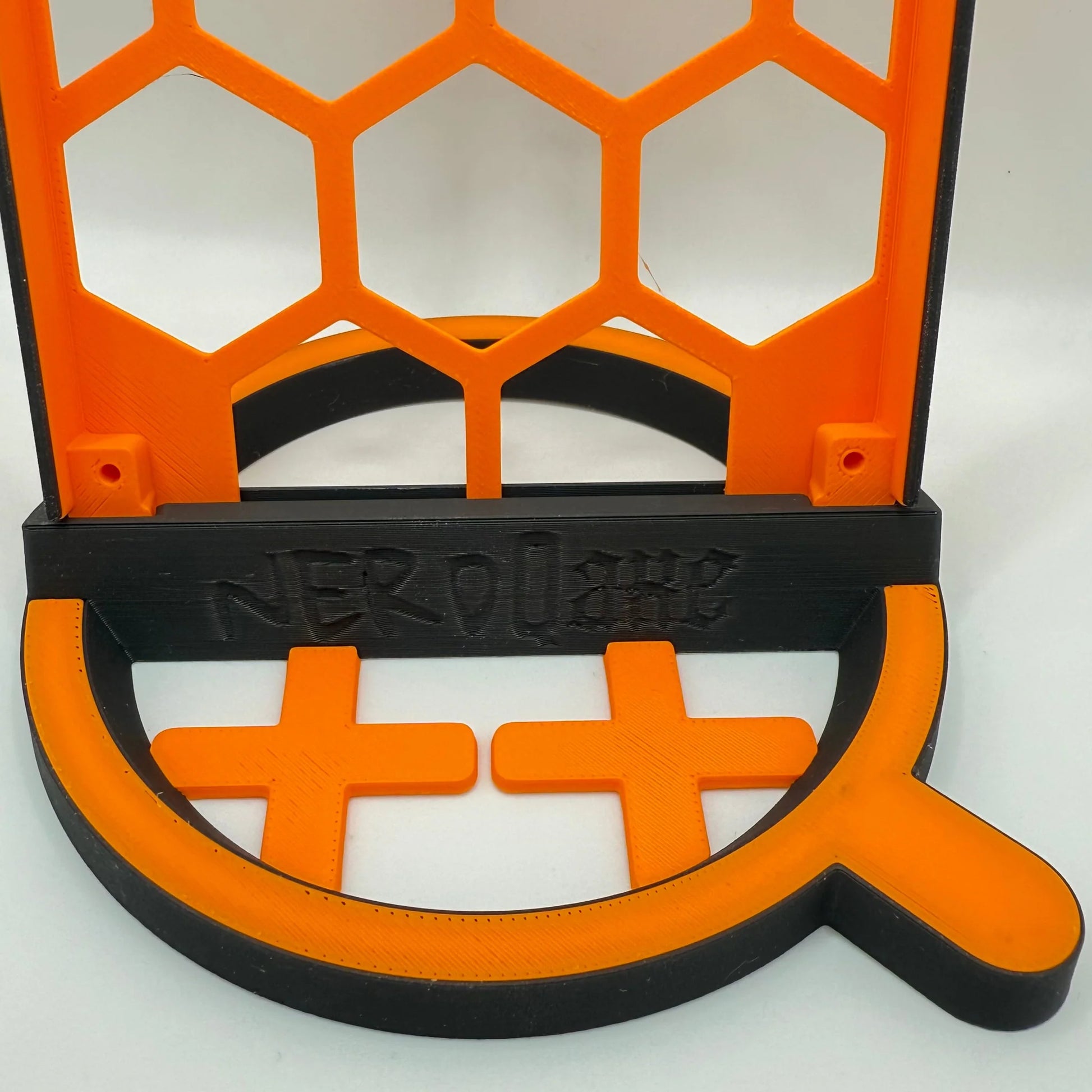

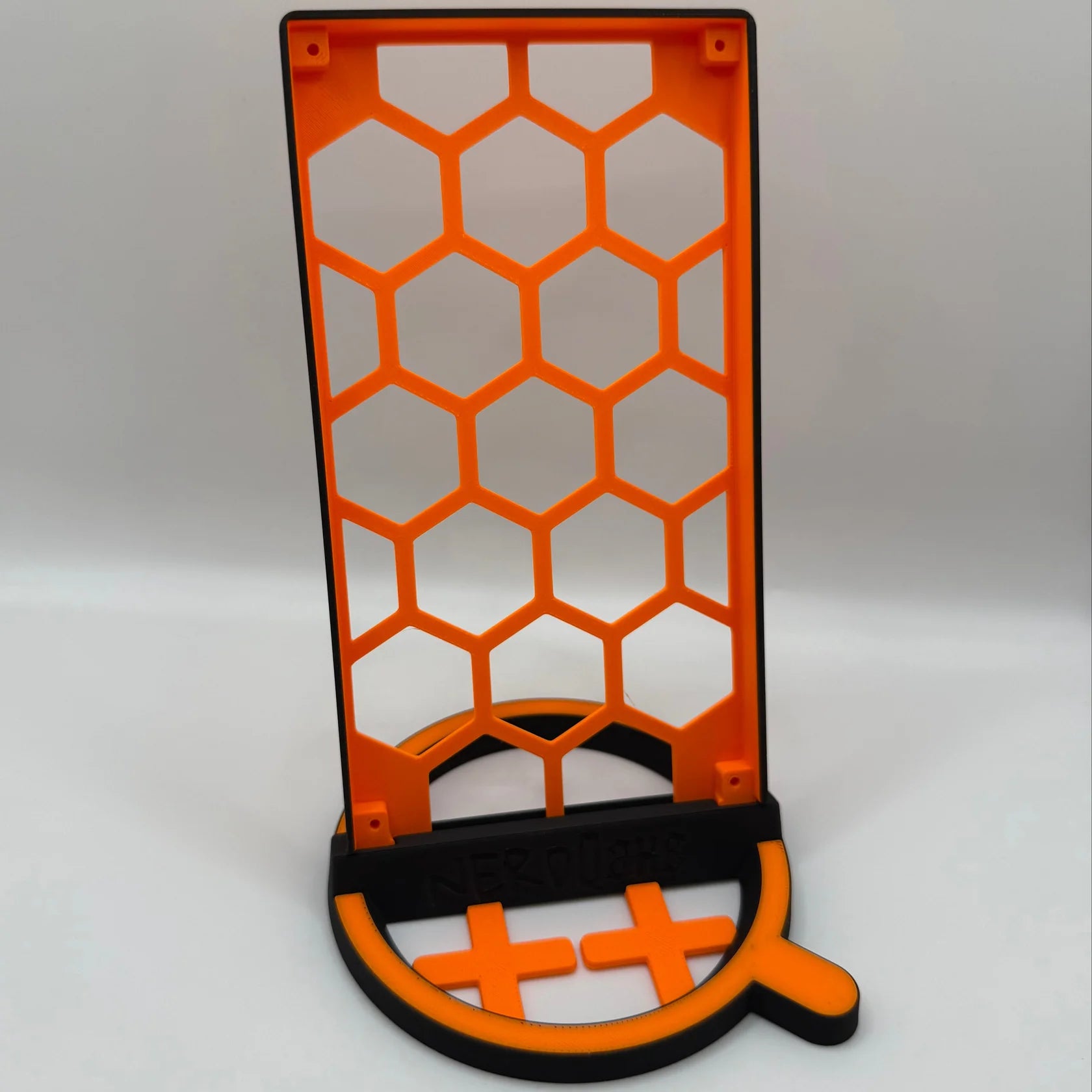

• Bi-colour stand in NerdQaxe ++ design, mounting screws included

Conclusion

The NerdQaxe ++ fuses German precision manufacturing, open-source engineering, and nearly 5 TH/s of hashing power into a living-room-friendly package. With solid-copper cooling, CE certification, and community support via OSMU, you’re not just getting more performance—you’re investing in the future of decentralized Bitcoin mining. Plug in, mine on!

NerdQaxe++ was developed by @Pmaxsd
